The new drill guide is designed to make drilling of wood easier, straighter, and more accurate.
With a 1/4 inch hexagonal shaft, it can be used with cordless and corded drills and impact
With keyed chuck, tapered depth control shaft and limit ring, spring return, reversible chuck bracket, built-in V-groove, alignment and adjustable fence
The chuck carrier has a 1″ drill bit capacity, but if you remove it and reverse it, you can fit bits up to 2″ wide.
A v-groove in the base allows for easy centered drilling of round stock such as wood dowels.

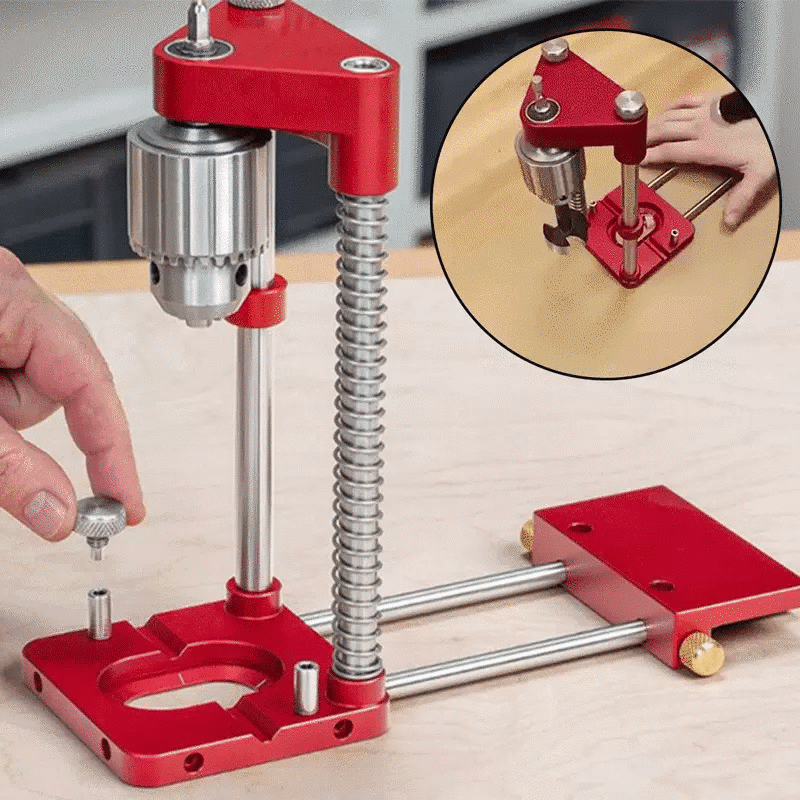

There are two centered pins that stow on board when not in use. For use, they thread into the bottom of the base and can be tightened with one of the column caps, which has a built-in hex bit.
The fence can be attached to any of the 4 sides of the Auto-Line’s square base.
Additionally, the fence can be used in multiple orientations. Here, it’s used to reference against the edge of aboard.
The fence can also be reversed for maximum range.
The fence can also be rotated in such a manner that allows for easier drilling of vertical boards.
When the drill guide is used on a larger surface (such as plywood or other panels), the fence can also be used as a leg to provide additional support.
Questions & Answer:
Question: Does this Woodworking drilling guide look to be a useful accessory?
Answer: Sure. It has multiple features and a very versatile design. The design does not seem to have any cut corners. The chuck carrier, for example, is built with Teflon sleeves that move along stainless steel columns. One of the columns has a tapered flat machined into it, to ensure that the stop collar does not move or slide down during use. You also get the fence, which seems to be quite versatile. The hex bit necessary to install the centering pins is machined into the bottoms of the column caps.
By runilk.com on February 15, 2022
Question: Where is this product made?
Answer: This product is made in the U.S.A. It seems to have been designed for maximum usefulness, versatility, and quality.
By scootergirl1952 on January 27, 2022
Question: Let’s say you have to drill a stopped or through-hole into your wood-topped workbench. That hole needs to be perfectly placed and perfectly straight. If you have both accessories in front of you, which would you use?
Answer: From what I can see, I think this tool would align easier, especially if the fence can be used.
By Kelvin. R. on February 1, 2022
Question: How long can i get this product if i placed my order? I have a plan of big wood carving, and this tool would be useful on drilling hole.
Answer: 12 days, I got this even if i chose VIP shipping (should be arrived within 7 days). Thanks to god, the product is same as they described. My husband loves this so much.
By Cathy on March 9, 2022
